AS-19HG Гамма корректор

Код Товара: AS19-HG

Артикул: 001459

0 отзывов

150.00р.

Без НДС: 150.00р.

Наличие: 15 шт.

Микросхема Гамма-корректора для телевизора AS-19HG AS19-HG - 18+1 Channel Voltage Buffers for TFT LCD, TQFP-48 Features Wide supply voltage range 6.5V ~ 18V Rail-to-rail output swing (The highest two stage & lowest two stage) High slew rate 1V/μs GBWP 1 MHz 2 MHz -3dB Bandw... →

Описание
Отзывов (0)

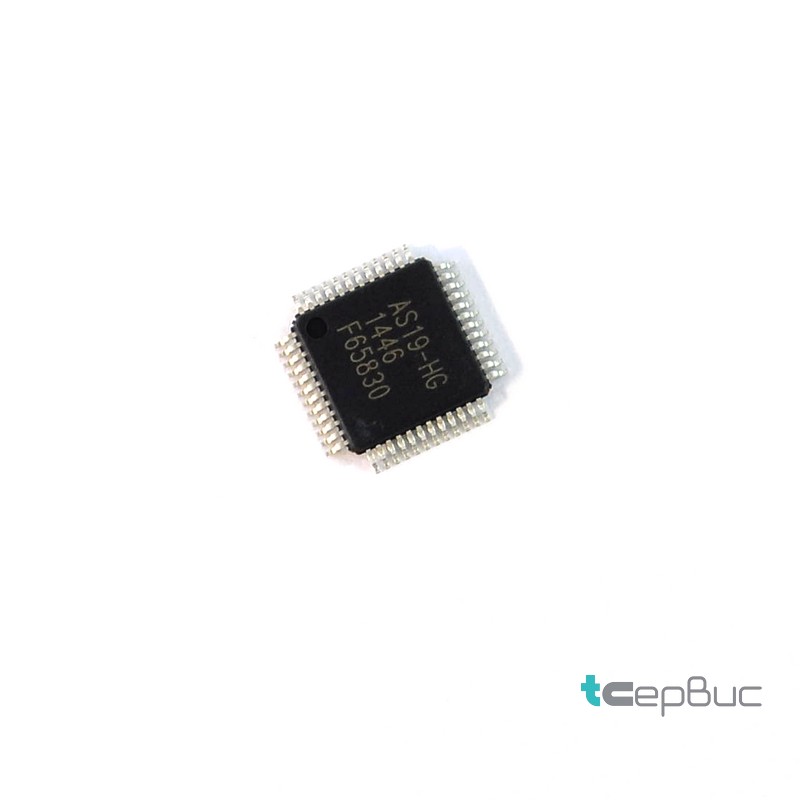

Микросхема Гамма-корректора для телевизора AS-19HG

AS19-HG - 18+1 Channel Voltage Buffers for TFT LCD, TQFP-48

Features
Wide supply voltage range 6.5V ~ 18V
Rail-to-rail output swing (The highest two stage & lowest two stage)
High slew rate 1V/μs
GBWP 1 MHz
2 MHz -3dB Bandwidth
Large Vcom Drive Current: ±100mA(Max)
Ultra-small Package TQFP-48

Applications
TFT-LCD Reference Driver
